Endoscope White Balance: How to Do It Right Every Time

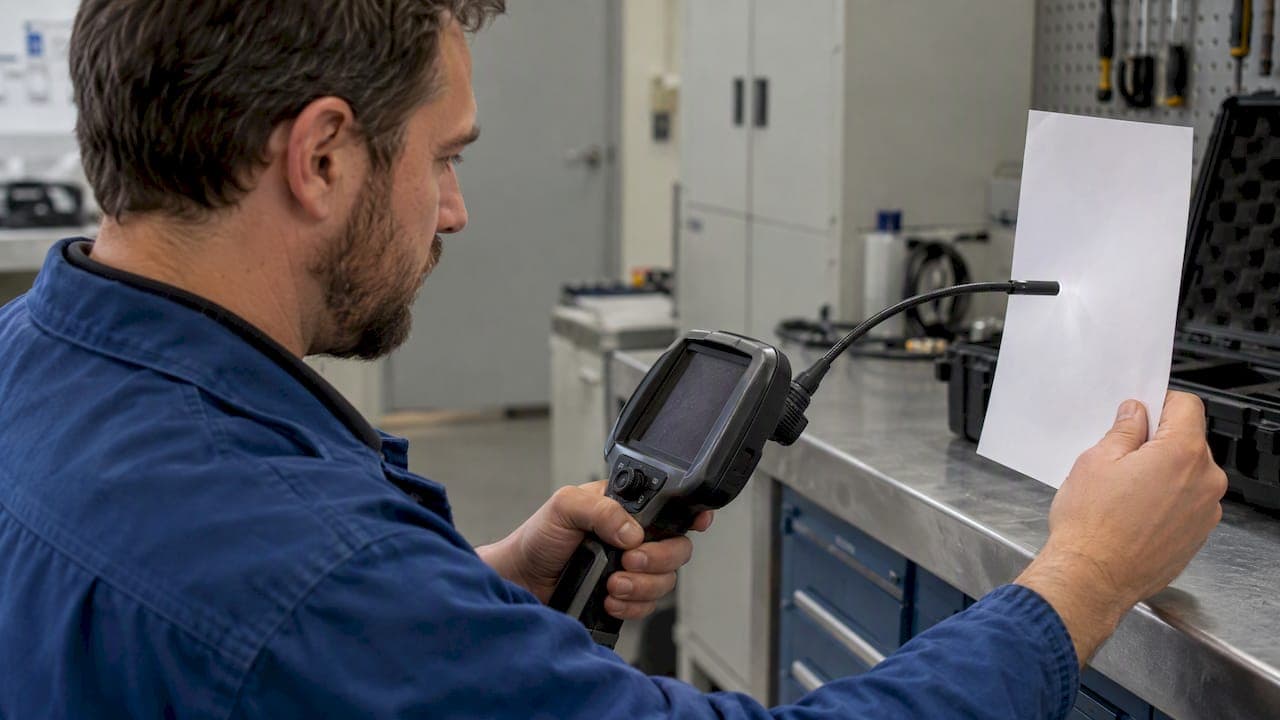

To white balance an endoscope, light the scope, aim its tip at a clean, matte white target so the whole image is white, and press the white balance button or menu command until the system confirms. Do it every time you change the scope, the camera head, the light source or the light cable, and as a habit before every procedure or inspection. Skip it and you get a blue, yellow or pink cast that can hide inflammation, blood, rust or heat discoloration.

This guide covers the steps, the targets that work, the errors that stop a calibration, and the differences between veterinary scopes and industrial borescopes.

1800endoscope

Get the Right Endoscope for Your Work

Explore veterinary endoscopes and accessories designed for animal procedures, including portable systems for small and large animals.

Explore endoscopes

TL;DR

White balance tells the camera what "white" looks like under the exact light source and scope you are using. Without it, every other color in the image is off.
Repeat it whenever the scope, camera head or light changes, and make it part of your pre-procedure routine.
Use a clean, non-glare white target, such as stacked gauze pads, with the tip close and no room light falling on it.
A failed white balance usually points to a weak light path (damaged light cable, dirty tip or coupler) rather than a dead camera.
Clean the optics first. A smudged lens produces a calibration that is wrong in a different way.

What white balance does in an endoscope
When you need to white balance
Step by step: how to white balance
What makes a good white target
Why white balance fails, and what to check
Automatic versus manual white balance
Veterinary use: small animals, horses and mixed fleets
Industrial inspection: color matters there too
Keep the optics clean, and the white balance will hold
Our perspective
Choosing equipment that makes calibration easy
A quick white balance checklist
FAQ
Sources

What white balance does in an endoscope

Every light source has its own color temperature. Xenon, LED and halogen lamps all emit different spectral mixes, and the scope's fibers and optics shift that light again. Endoscope imaging designs deal with this by pointing the camera at a known white target and letting the processor adjust its red, green and blue gains so that the target renders as neutral white. Everything else in the frame is then corrected by the same amount.

White target guides RGB gain correction

That is why white balance is not a cosmetic setting. In a veterinary exam you are judging mucosal color: pale, injected, congested, bruised. In an industrial inspection you are judging scorch marks, oxidation, coating wear or coolant residue. A color cast makes those judgments less reliable, and it does so quietly, because the picture still looks like a perfectly good picture.

When you need to white balance

The short answer: more often than most people do.

After changing the endoscope. The Karl Storz IMAGE1 S manual states that white balance must be performed again after replacing the endoscope, and warns that improper white balance may cause color distortion.
After connecting a new camera head to the controller or video processor.
After swapping the light source or light cable. A different lamp or a worn cable changes the light reaching the tip.
Before each procedure or inspection, even with automatic white balance. A veterinary equipment lecture on endoscope troubleshooting describes white balancing as something to practice at the start of every endoscopic procedure.
Any time the image looks tinted, especially if a known white object (gauze, a drape, a white label) no longer looks white.

If you share one processor between several scopes, for example a gastroscope on Monday and a rigid arthroscope on Tuesday, treat each hookup as a new setup.

Step by step: how to white balance

Menus differ by brand, but the sequence is nearly universal.

Clean the distal lens and the coupler. Fingerprints, lubricant film or dried debris scatter light and skew the result. Wipe the tip with the cleaning method your scope manufacturer approves.
Connect everything and power it up. Attach the scope, light cable and camera head. Turn on the light source and processor, and let the lamp reach stable output.
Set up a white target. A manufacturer's white balance cap works well. Stacked white gauze pads are the common alternative. One Stryker-format control unit manual describes pointing the scope at several stacked 4x4 white gauze pads.
Position the tip close, with the target filling the field. The same manual specifies roughly 1 cm from the target. Some systems, such as a stereoscopic platform whose menu we saw documented, call for about 3 cm, so check your own manual.
Block outside light. Overhead surgical lamps or window light shining onto the gauze will contaminate the reading.
Trigger the white balance. Press the button on the processor, the camera head or the touchscreen menu. Many units beep or flash an indicator when it succeeds.
Check the image. The white target should look neutral on the monitor, not bluish or yellowish. If it is tinted, repeat the process.

Handheld videoscopes and borescopes

Portable industrial videoscopes often put white balance in an on-screen menu instead of a button on a processor. One articulating video borescope manual describes setting manual white balance at the site of use with a plain white sheet of paper placed 6 to 12 inches in front of the camera. That distance is far greater than the 1 cm used with surgical-style systems, which shows why reading the manual for your own device matters. Small-diameter probes with built-in LEDs usually need a closer, well-lit target; larger lens assemblies tolerate more distance.

If your borescope has automatic white balance only, you cannot trigger a calibration, but you can still help it. Keep the probe out of mixed lighting when you start, and avoid starting a recording while the tip is pointing at a bright window or a strongly colored surface.

What makes a good white target

The target does most of the work. A bad one gives you a confidently wrong calibration.

Target	Works well	Watch out for
Stacked white gauze pads	Diffuses light evenly, always on hand in a clinic	A single thin layer lets background show through, so stack several
Manufacturer white balance cap or tube	Designed for the job, consistent	Must be clean and compatible with your scope diameter
Plain matte white paper (field use)	Easy for portable industrial scopes	Glossy or bright-whitened paper can glare or fluoresce under some lights
Latex gloves, plastic drapes, shiny packaging	Nothing, avoid them	Glare and tints. They are not neutral

The control unit manual is clear that the surface should be clean and free of glare, and that the white balance should be done without other light sources interfering. In practice, if your monitor shows bright hot spots on the target, tilt the tip slightly or add another gauze layer. An overexposed, washed-out target is a common reason for a failed calibration.

Why white balance fails, and what to check

When a system reports a white balance failure, people often blame the camera. Work through the light path first.

Light cable. Broken fibers reduce the light that reaches the scope. The control unit manual we cite lists damaged fibers in the light cable among the causes of a failed calibration. Hold the cable up to a light and look for dark dots at the end face, which indicate broken fibers.
Dirty tip or coupler face. Residue on the distal lens or the eyepiece coupler cuts the signal. Clean them and try again.
Scope damage. Broken fibers inside the scope's own light bundle give the same symptom. If a second scope balances fine on the same cable and camera, the first scope is the suspect.
Too little target light. Too distant a tip, or a gray, dirty target, can drop the signal below what the processor needs.
Too much glare. A shiny surface or stray lamp reflections can saturate the sensor.
Lamp near end of life. A dim or color-shifted lamp may balance, but you will notice poor brightness and the need to run the gain high.

Our videoscope troubleshooting guide goes deeper into dim images, noise and intermittent signal, and our light source calibration walkthrough covers the lamp side.

Automatic versus manual white balance

Automatic white balance (AWB) continuously estimates the scene's color temperature. It is convenient, and it is usually fine for a handheld borescope in daylight. It struggles in an endoscopic setting for a simple reason: the scene is almost entirely pink, red or rust-colored, with no neutral reference. The algorithm may decide the dominant color is the "cast" and neutralize it, flattening real color information.

Manual (one-touch) white balance fixes this by using a real white reference. Many professional systems offer both: an automatic mode that holds the calibration, and a manual trigger you use at setup. The IMAGE1 S manual quoted above and the veterinary lecture agree on the practical point: calibrate with the scope attached and the light running, each time the combination changes.

A useful habit is to save nothing to chance: if a unit has preset color profiles, choose the one that matches your light source type (LED or xenon) before balancing, then calibrate.

Automatic versus manual white balance — overview diagram

Veterinary use: small animals, horses and mixed fleets

Clinics usually own more than one scope. A small-diameter flexible videoscope for cats and small dogs, a longer one for equine work, a rigid otoscope and a cystoscope may all connect to the same light source and processor at different times.

A few clinic-level habits help:

Put a stack of clean gauze or a dedicated white cap in the scope setup tray, so the white target is never improvised mid-case.
Balance after the scope is connected, not before. Do it in the same room lighting you will use for the case, but with the target shaded.
Add white balance to your pre-procedure checklist next to leak testing and a quick check of insufflation and suction. Our small animal endoscopy tips include other setup details worth building into that list.
Record a brief image of the white target at the start of video capture on cases you may need to review or send for a second opinion. It documents the color baseline.

Never balance on a surface that has contacted a patient or that is not clean. Use fresh, clean gauze for each calibration.

Industrial inspection: color matters there too

Nondestructive testing technicians sometimes treat white balance as optional because the goal is shape and position, not tissue color. But color carries evidence: heat tint on turbine components, rust versus staining, sealant color, weld discoloration, wire insulation color in harness inspections. If a report will be reviewed by someone who was not there, correct color makes your photos defensible.

Practical points:

Re-balance when moving between a dark pipe interior and a bright open area if the unit's LEDs change output or the auto mode hunts.
Use a clean white card kept in the case, not whatever scrap is near the machine.
Check the tip for oil, grease or coolant before you calibrate. A film on the lens turns your target slightly yellow and produces an overcorrected blue cast.
Brightness is a separate adjustment from white balance. Lowering LED output to avoid glare on shiny metal does not replace calibrating color.

Our guide to using flexible borescopes covers articulation, illumination and image capture in more detail.

Keep the optics clean, and the white balance will hold

Calibration only corrects the light path as it is right now. A film on the lens or a smeared monitor changes how you see the result. Before each setup, wipe the distal lens as your manufacturer directs, and keep the monitor clean as well; a small lens and screen cleaner in the cart is a simple way to keep fingerprints off the display where you judge color.

For scopes that enter patients, cleaning is not just about the image. Infection-control guidance describes bedside cleaning right after the procedure, wiping the exterior and flushing channels, followed by a formal manual cleaning within the manufacturer's stated window. Material that dries on the scope is harder to remove later and can leave residue at the tip. For the reprocessing steps themselves, see our veterinary endoscope sterilization guide and the step by step sterilization walkthrough. Use only the cleaning agents your scope's manufacturer approves, and follow your facility's protocol.

Our perspective

We sell and repair veterinary and industrial scopes, and white balance is one of the most common "my scope is broken" calls that turns out to be a setup issue. The picture looks tinted, the owner assumes the camera has failed, and the cause is a dirty tip, a worn light cable or a calibration done against a shiny, unevenly lit surface.

Our advice is plain. Treat white balance as the first step of the case, not a repair step. Keep a clean white target with the scope. Look at the light cable when calibration fails, because that is the cheapest part to replace and the most frequent culprit. And when you buy a system, ask how white balance is triggered, whether it is manual or automatic, and whether it works with the light source you will actually use. A portable videoscope with a one-button calibration is often easier to do correctly in a busy clinic than a menu buried three screens deep.

That is how we think about affordable veterinary-focused equipment: it should be easy to set up properly every time, not only when your most experienced technician is in the room.

— Endoscope

Choosing equipment that makes calibration easy

When you compare systems, look at these points before price alone:

How white balance is triggered. A dedicated button, a camera head button, or a menu option. Dedicated controls get used more.
Feedback. Does the unit confirm success or failure clearly?
Light source type. LED and xenon behave differently, and you should calibrate for the one in use.
Replaceable light cables. If the cable can be swapped easily, a broken-fiber diagnosis takes minutes.
Portability. Handheld units used in different rooms or sites need calibration more often, so quick controls matter.

If you are building or upgrading a clinic or inspection kit, we carry veterinary endoscopy equipment and endoscopes, rigid scopes, arthroscopes and otoscopes, and portable borescopes and videoscopes for industrial work. If your current scope will not balance even with a good cable and clean optics, our endoscope repair service can assess it. Our endoscopy FAQ answers other common setup questions, and the videoscope maintenance guide helps keep the whole system in shape.

A quick white balance checklist

Print this and tape it to the cart:

Clean the distal lens and coupler.
Connect scope, light cable and camera head. Turn on the light and processor.
Place the tip about 1 cm (or the distance in your manual) from stacked, clean white gauze or a white cap.
Shade the target from room and surgical lights.
Trigger white balance and wait for confirmation.
Verify that the white target looks neutral on screen.
If it fails: check the light cable, clean the tip and coupler, reduce glare, then try another scope.
Repeat whenever any component in the chain changes.

FAQ

How often should I white balance an endoscope?

Do it every time you change the scope, camera head, light source or light cable, and before each procedure or inspection as routine. Manufacturers such as the maker of the IMAGE1 S system state that it must be repeated after the endoscope is replaced. If the image ever looks tinted, balance again.

What can I use as a white target if I do not have a white balance cap?

Several stacked layers of clean white gauze are the usual stand-in, because they diffuse light and avoid glare. Use plain matte white paper for field work with portable borescopes. Avoid gloves, plastic or glossy surfaces, which cast tint or reflect light.

Why does my endoscope say white balance failed?

The most common reasons are a weak light path and a bad target. Check the light cable for broken fibers, clean the distal lens and coupler, and make sure the target is bright but not glaring and not lit by outside lamps. If a different scope balances on the same setup, the first scope may need service.

Is automatic white balance good enough?

For handheld borescopes in ordinary lighting, often yes. For clinical scopes viewing mostly pink and red tissue, a manual one-touch calibration against a real white target is more reliable. Many systems give you both, so use the manual trigger at setup.
